🚦 ATMERS AI

ADAPTIVE TRAFFIC MANAGEMENT AND EMERGENCY RESPONSE SYSTEM

Real-time traffic optimization using YOLOv8, OpenCV & Arduino

Designed & Developed by Madan R

🧠 About Project

The AI Powered Adaptive Traffic Management System is designed to intelligently control traffic signals using real-time vehicle detection. It uses YOLOv8 for object detection and dynamically adjusts signal timing to reduce congestion and improve traffic flow efficiency.

The system also integrates an RFID-based emergency detection module that identifies emergency vehicles such as ambulances and immediately provides signal clearance for faster response time.

  • ✔ Real-time multi-lane vehicle detection
  • ✔ AI-based traffic density calculation
  • ✔ Automatic signal timing optimization
  • ✔ Emergency vehicle priority system
  • ✔ Integrated Arduino hardware control
  • ✔ Live monitoring and alerts system

🚦 System Highlights

Accuracy: High precision detection using YOLOv8

Automation: Fully AI-controlled traffic signals

Response: Instant emergency clearance

Efficiency: Reduces waiting time & congestion

🚀 Key Features

📷 Real-time Vehicle Detection
🤖 AI-based Signal Control
🚑 Emergency Priority
📡 Live Monitoring
📲 Telegram Control
📩 Alerts System

âš™ Technologies Used

YOLOv8
OpenCV
Python
Arduino Mega
RFID Module
Telegram Bot

🔄 How It Works

1. Multi-Camera Traffic Capture

Four cameras continuously capture live traffic from each lane. Video feeds are processed in real-time using OpenCV.

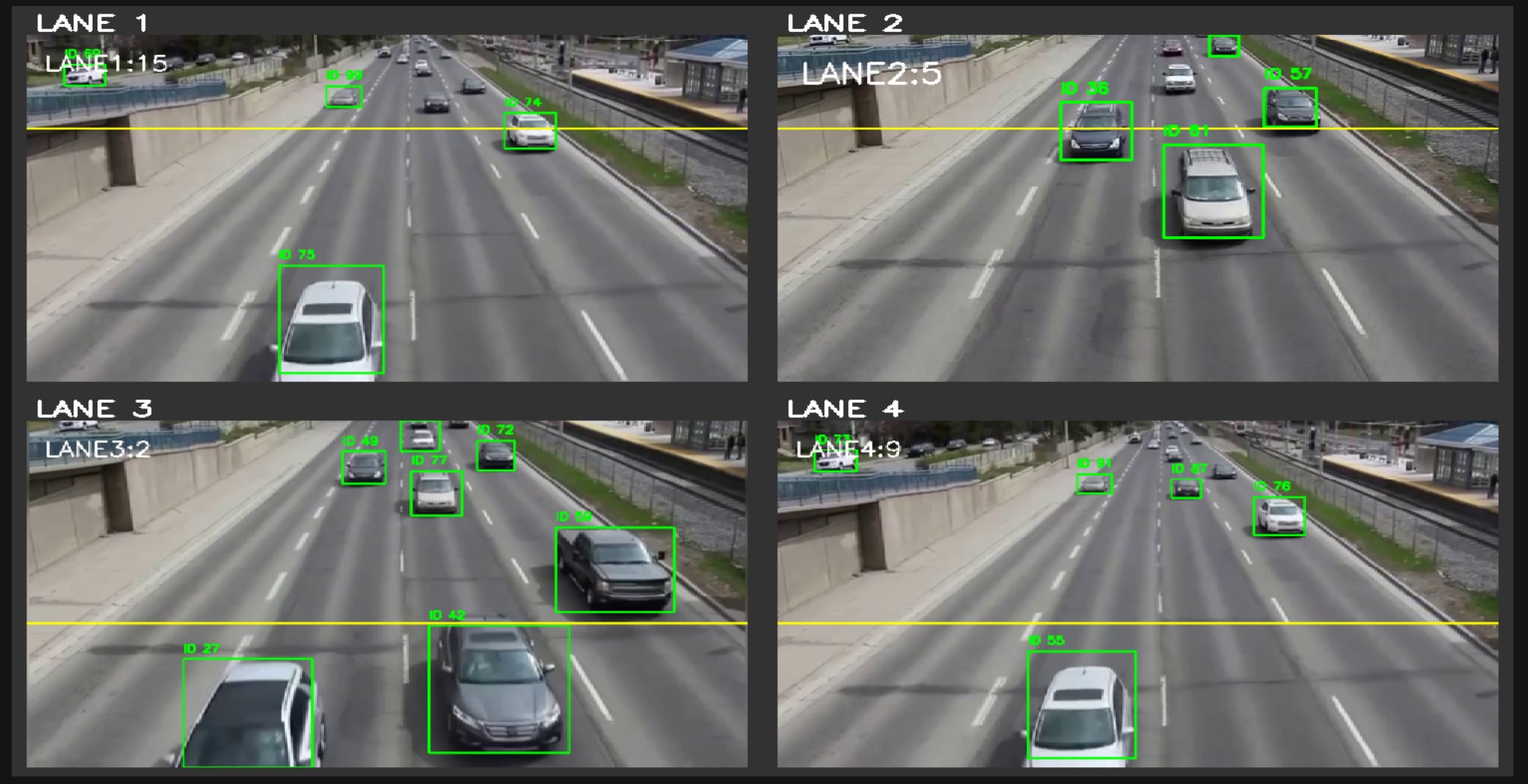

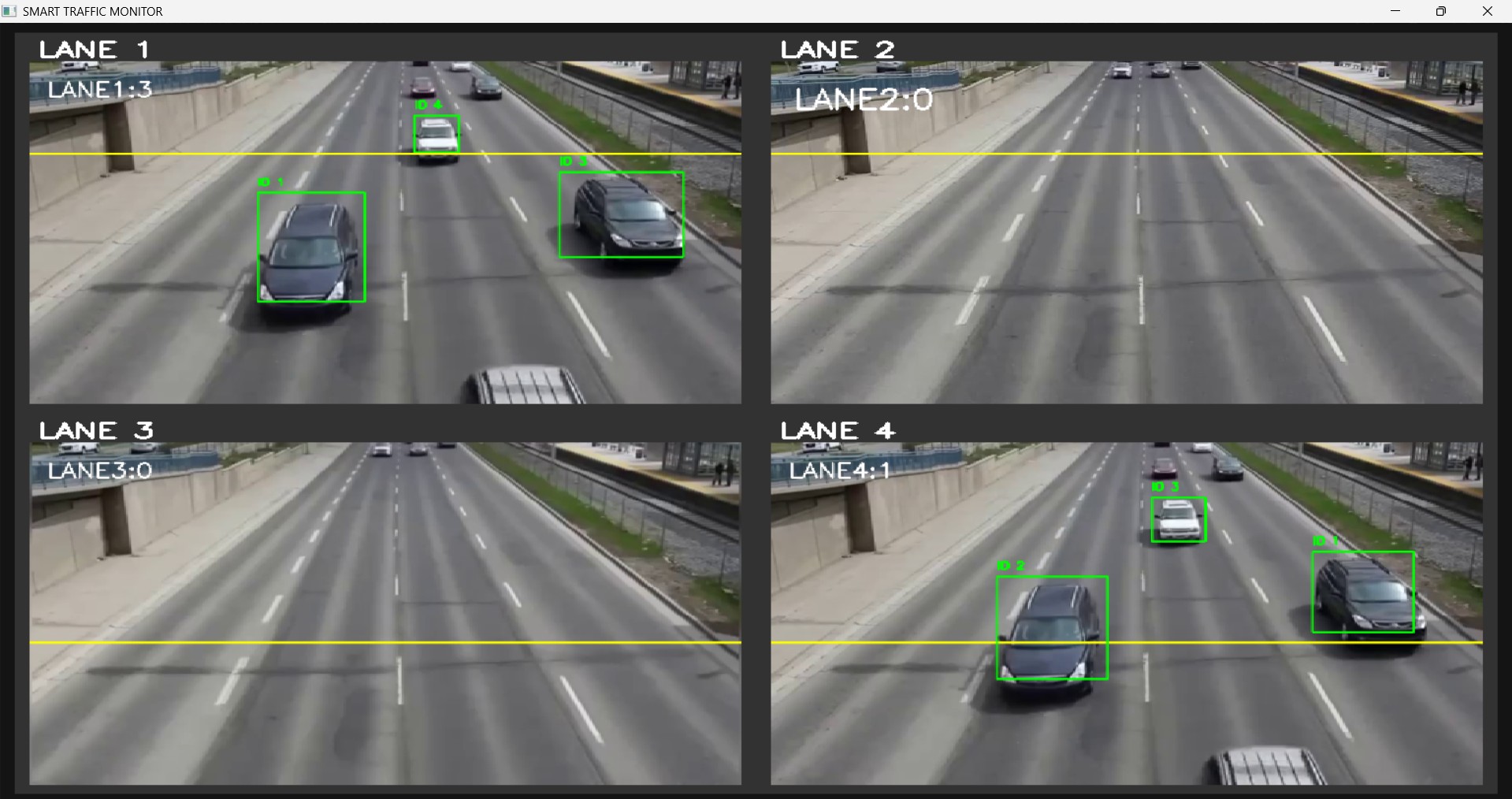

2. YOLOv8 Vehicle Detection & Tracking

YOLOv8 detects vehicles (cars, bikes, buses) and tracks them using unique IDs. Vehicles crossing counting lines are counted per lane.

3. Traffic Density Calculation

Vehicle counts are collected for a fixed time window. AI calculates traffic density and determines priority lanes dynamically.

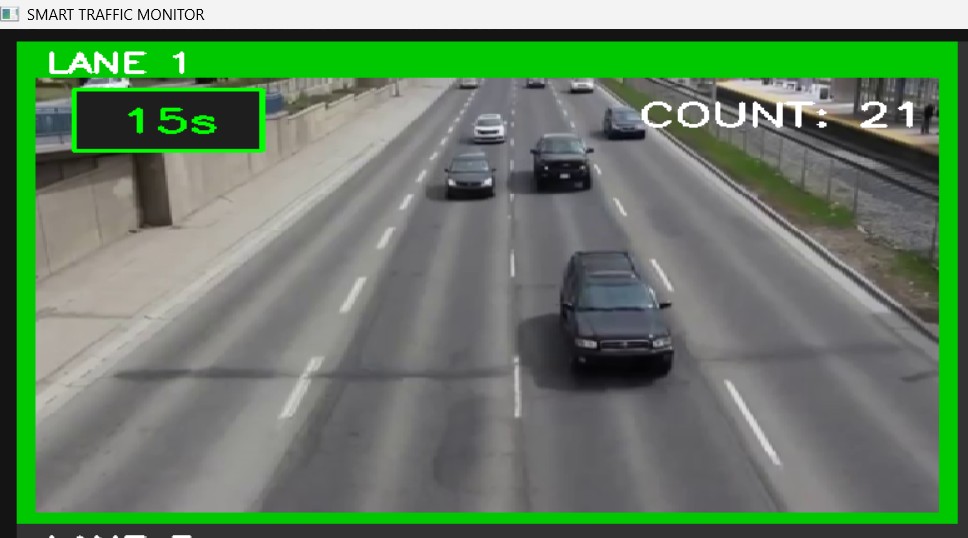

4. AI Signal Timing Control

Green signal duration is assigned based on vehicle count. Commands are sent from Python to Arduino via Serial communication.

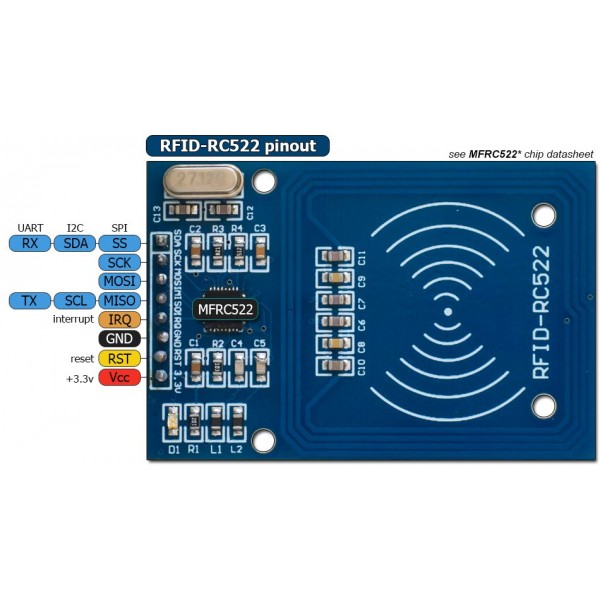

Arduino Mega RFID Module Servo Motor Traffic LEDs 7 Segment Display

6. Hardware Integration

The system integrates multiple hardware components to control real-time traffic signals. Arduino Mega acts as the central controller connecting all modules.

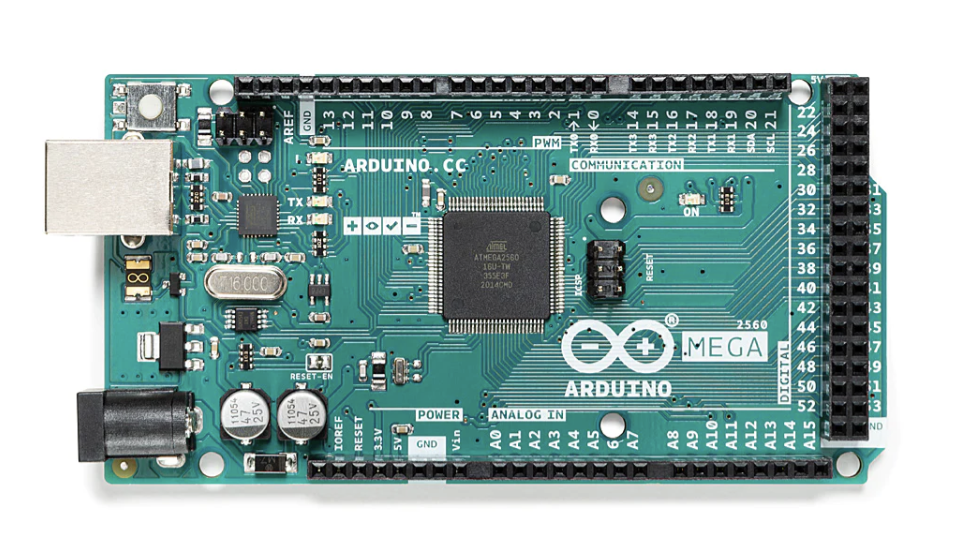

  • 🔧 Arduino Mega – Main controller

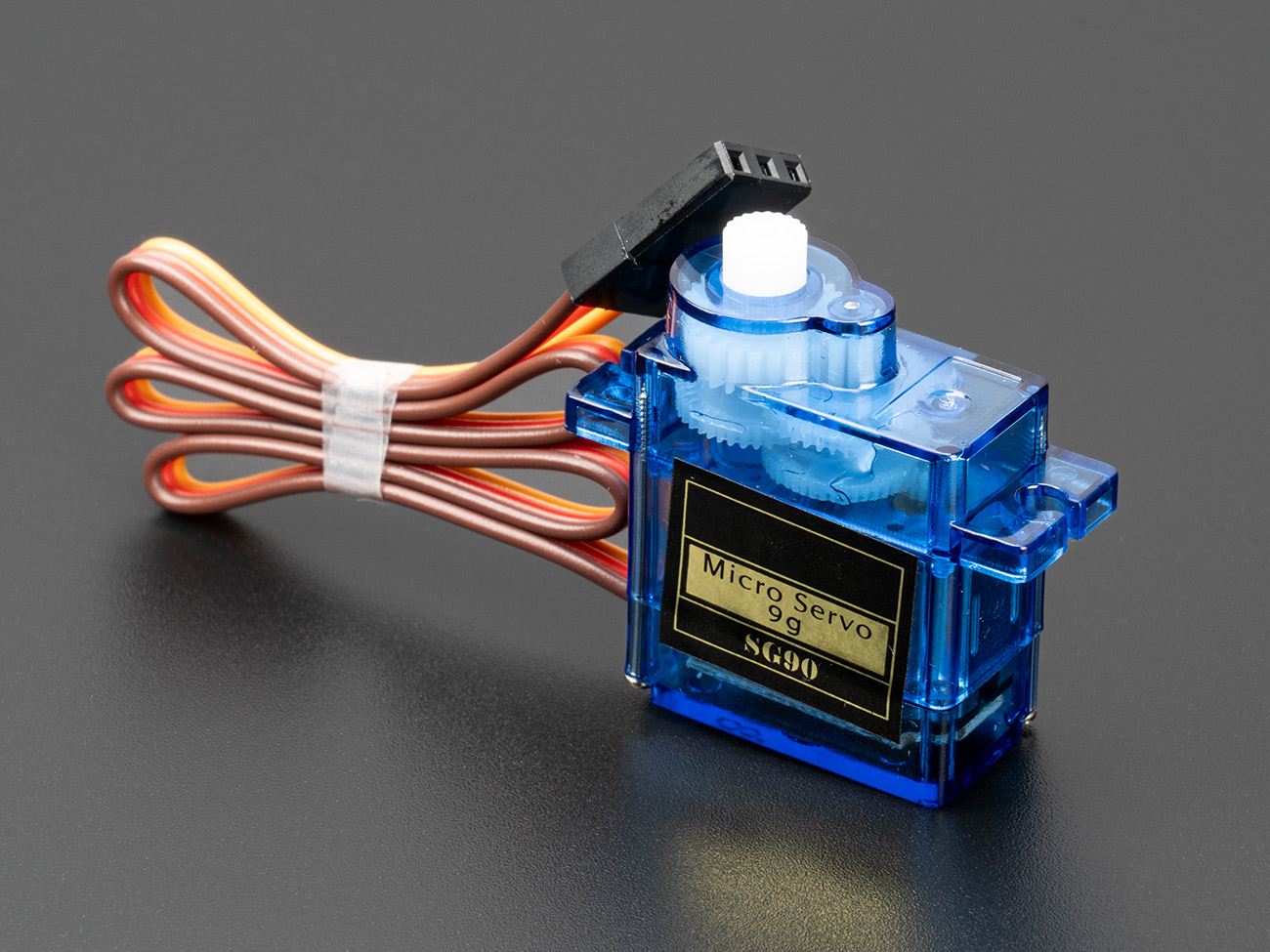

  • âš™ Servo Motors – Lane barrier control

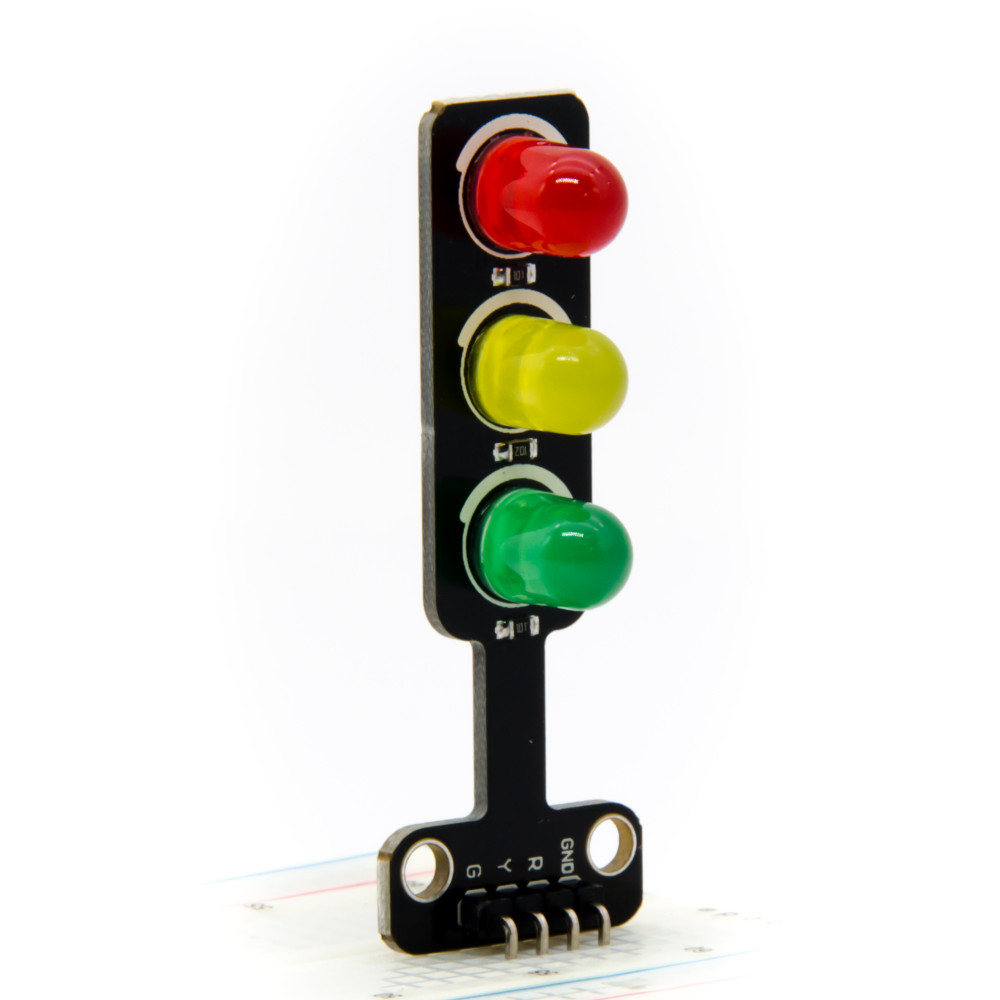

  • 🚦 Traffic LEDs – Signal indication

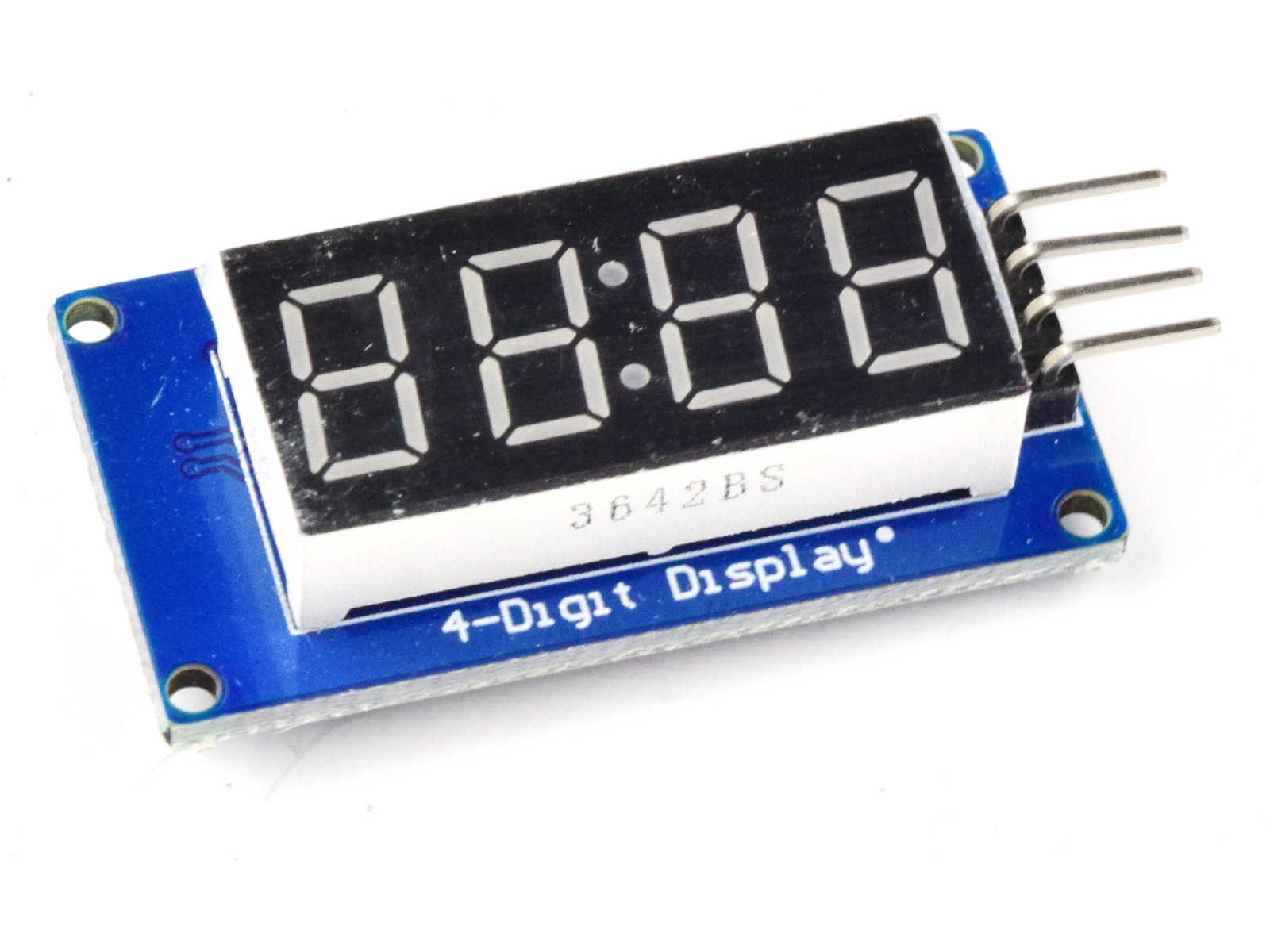

  • 🔢 4-digit 7 Segment – Timer display

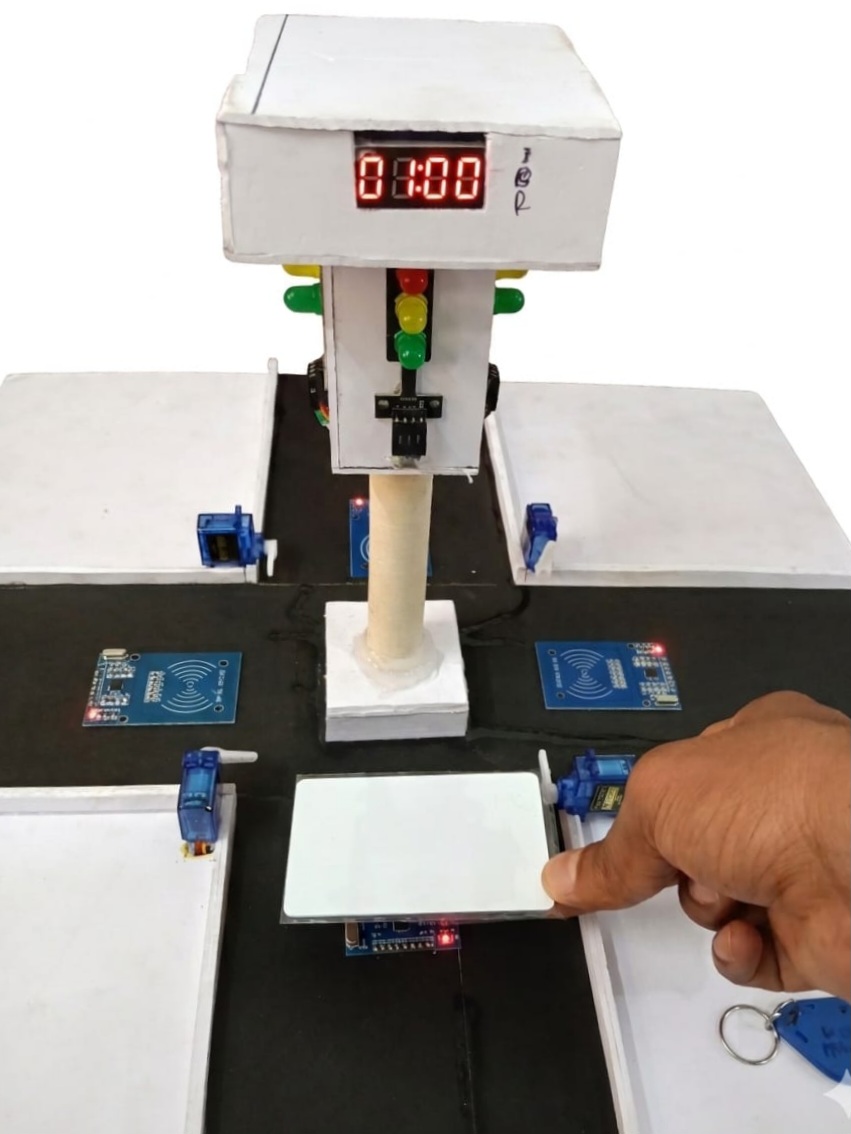

6. RFID Emergency Detection

RFID modules detect emergency vehicles. System instantly overrides signals and gives priority clearance.

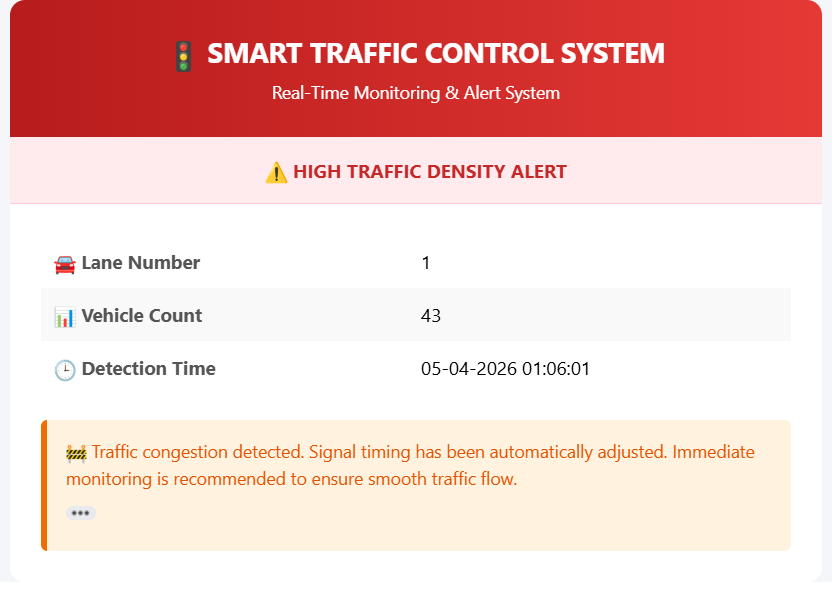

7. Alerts & Notifications

The system automatically sends real-time alerts for both traffic congestion and emergency situations. Notifications are delivered through Email and WhatsApp, ensuring instant communication to authorities.

  • 📧 Normal Traffic Email Alert

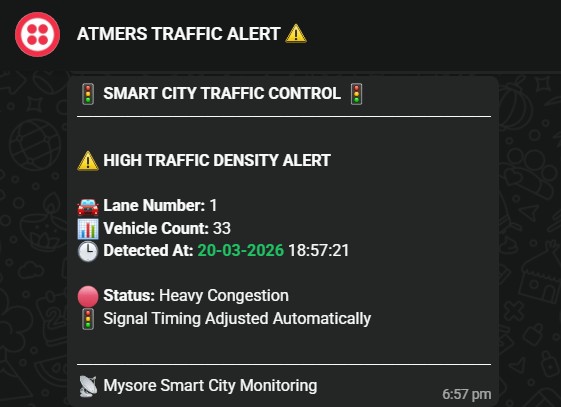

  • 📱 WhatsApp Congestion Alert

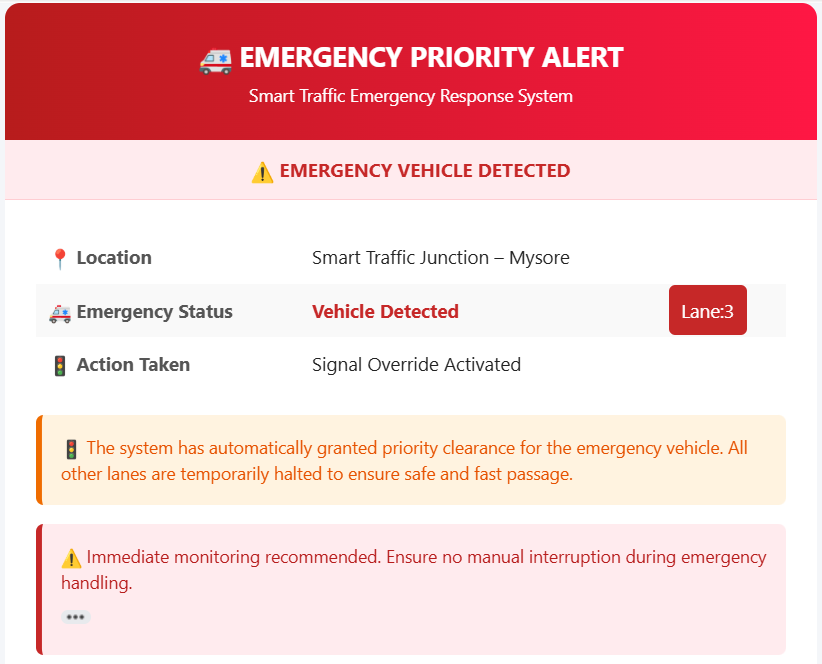

  • 🚑 Emergency Email Notification

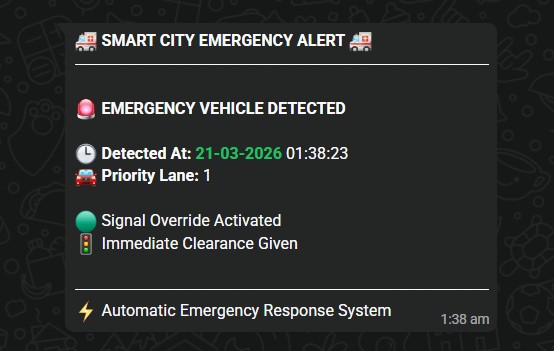

  • 🚨 Emergency WhatsApp Alert

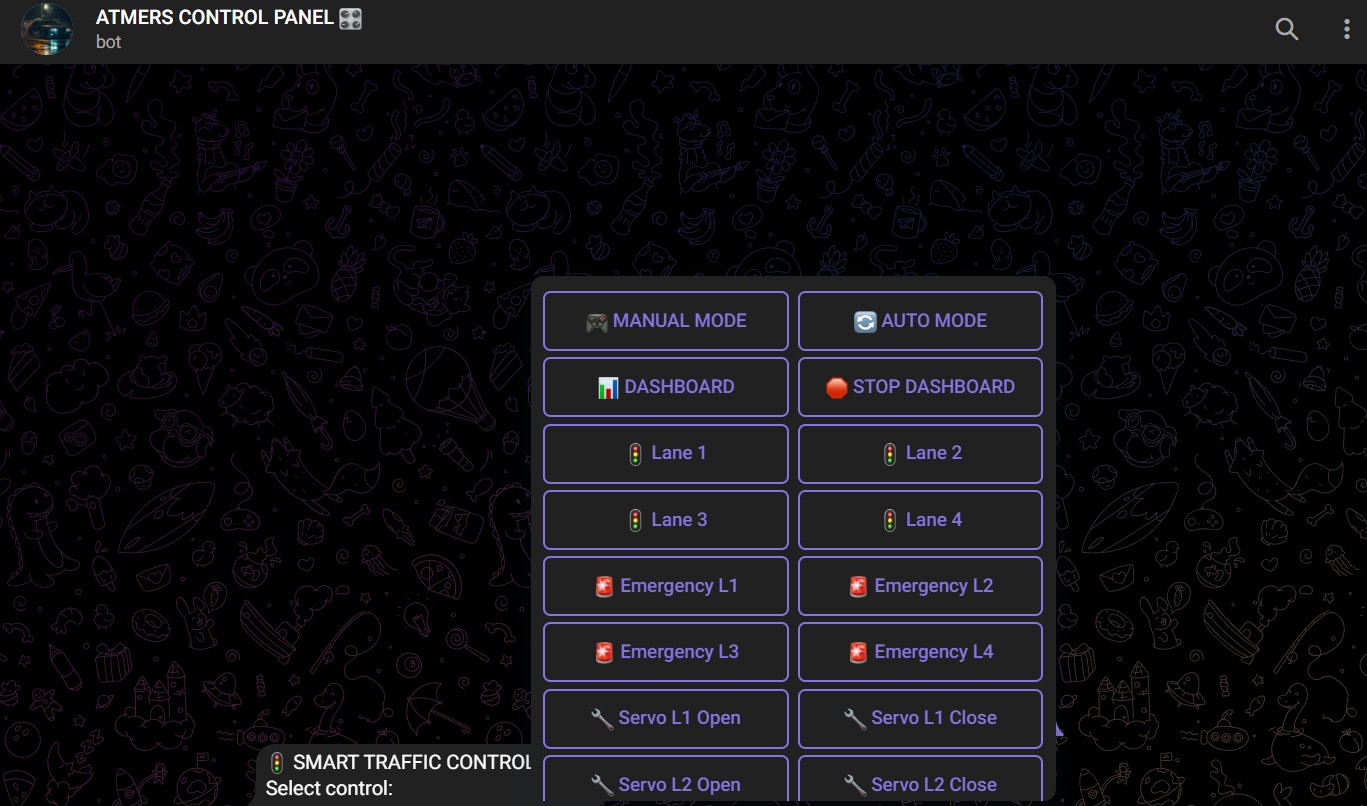

8. Remote Control via Telegram

User can manually control lanes, servos, and signals. Supports AUTO mode, MANUAL override, and emergency control.

🔌 System Design & Circuit

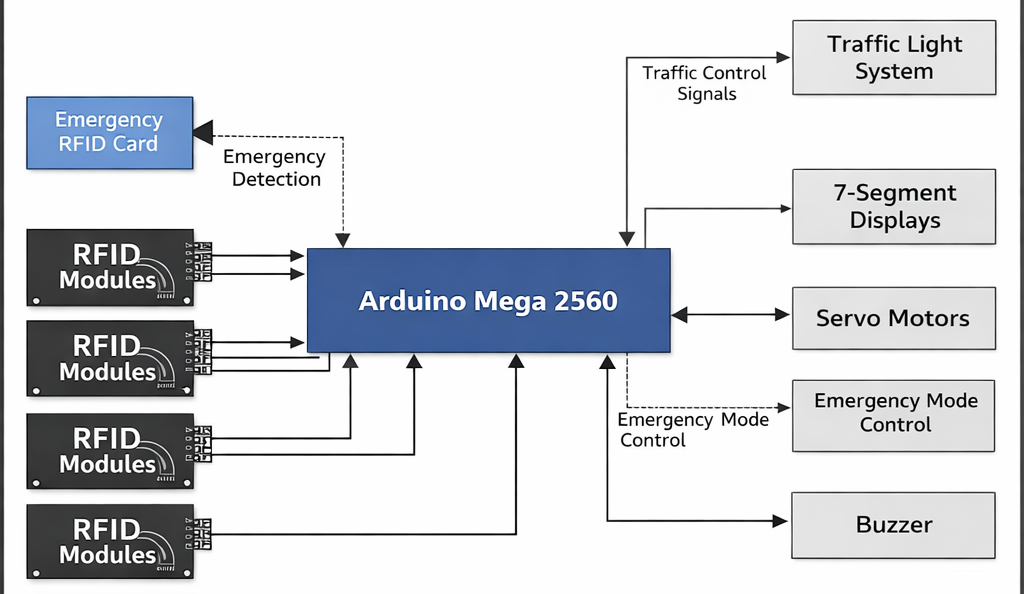

Block Diagram

Block Diagram

Overall system architecture showing AI processing, Arduino control, and traffic modules.

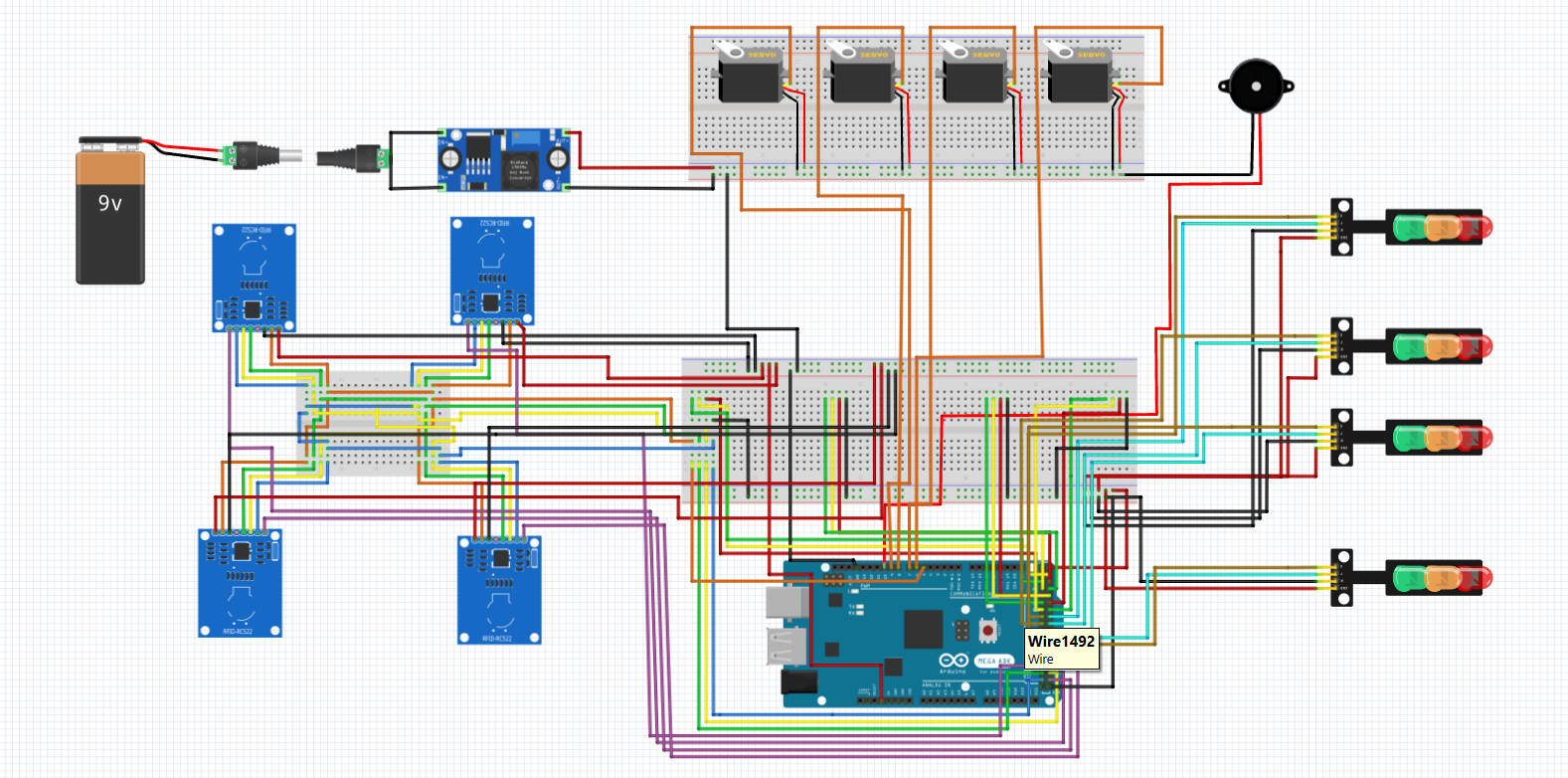

Circuit Diagram (Fritzing)

Circuit Diagram

Complete wiring of Arduino Mega, RFID modules, LEDs, servos, and display.

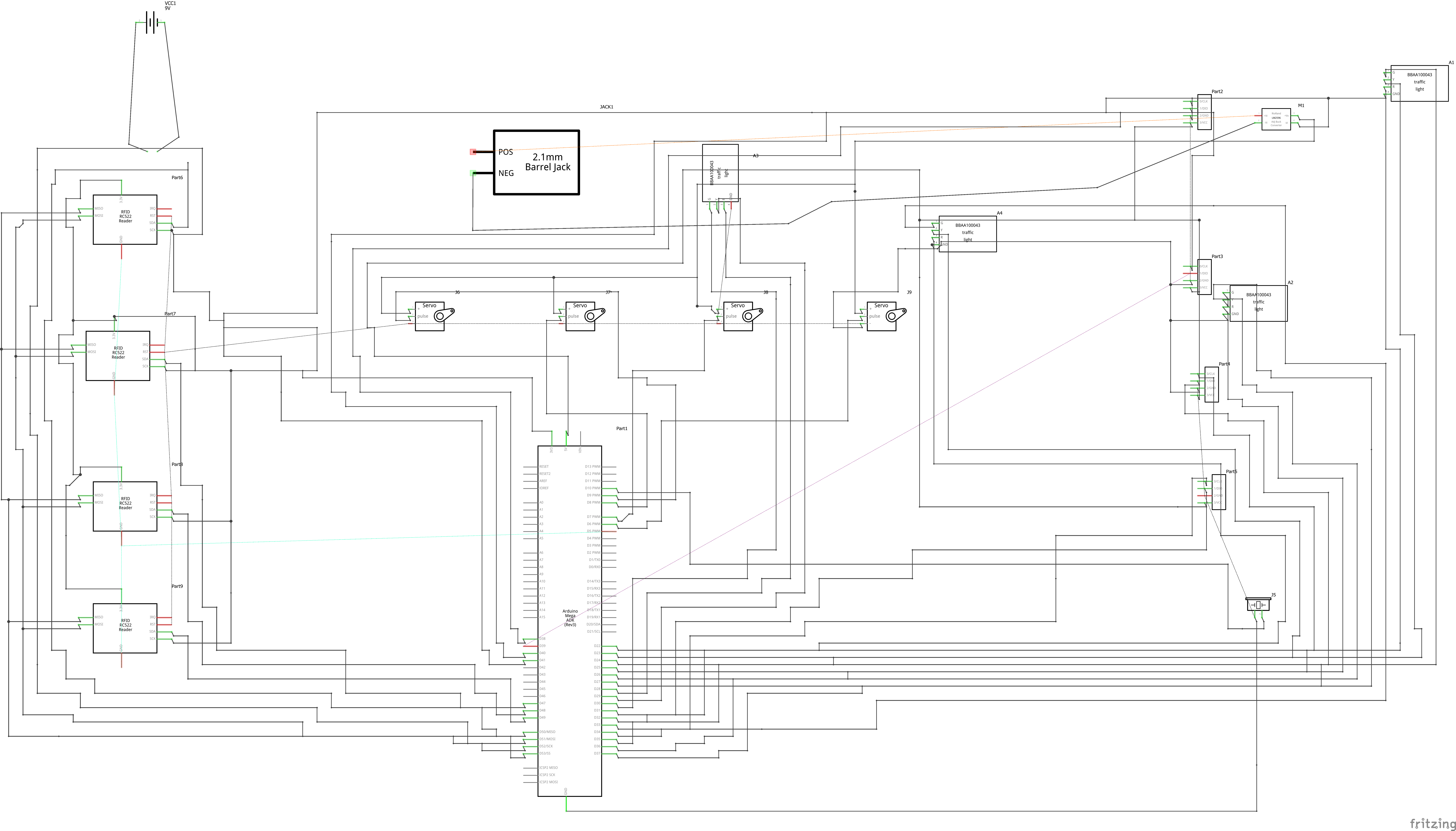

Schematic Diagram

Schematic Diagram

Electrical connections and signal flow between all components.

×
